TEKLYNX LABEL MATRIX Barcode Label Design Software

Overview

LABEL MATRIX 8

Easy-To-Use Label Design Software with an Intuitive User Interface and Helpful Label Design Wizards. Whether you need to design and print barcode, compliance or RFID labels, LABEL MATRIX 8’s helpful design wizards give you an easy-to-use solution for any industry.

LABEL MATRIX 8 is the most powerful, easy-to-use RFID and label design software package in the industry. Its helpful design and database connection wizards, along with a simple interface, allow users to quickly design bar code, compliance or RFID labels. If you are looking for an easy-to-use, wizard driven software solution for UHF and HF RFID encoding and label design, the choice is simple - TEKLYNX LABEL MATRIX 8.

With support for over 1000 thermal and thermal transfer (THT) printer drivers, as well as any Windows printer, you can maximize your printer’s performance and print large runs of labels in a very short time. Whether you need to design and print address labels for your small business or thousands of inventory labels for a multi-site warehousing plant or RF tags to bring your barcode labeling operation into the next generation, LABEL MATRIX can do the job.

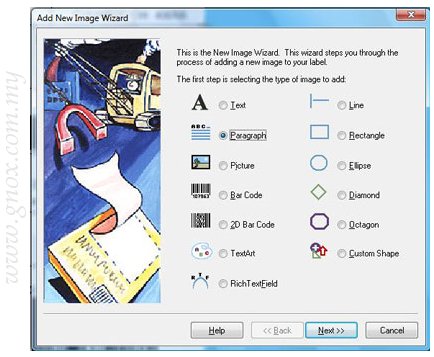

Screenshots

Benefits

Design Labels with Ease
It’s hard to believe that something this easy could also be so powerful. LABEL MATRIX features helpful design wizards that you can opt to use for everything from printer selection to database setup to 2D bar code configuration. LABEL MATRIX is the most efficient package for those printing labels occasionally.

Fast Track Your Labeling with Samples & Templates
LABEL MATRIX comes complete with hundreds of label samples and templates spanning from address labels to RFID labels. Print Avery mailing labels right out of the box to any printer. LABEL MATRIX allows users to meet virtually any compliance labeling requirement.

Supports Any Printer
LABEL MATRIX supports more than 1,750 thermal/thermal transfer printers as well as any Windows based printer. LABEL MATRIX’ specialized drivers allow you to take advantage of every feature your printer has to offer.

Robust Database Support
Attach multiple relational databases with an unlimited number of key search fields. Not too experienced working with database files? No problem! LABEL MATRIX’s Database Wizard will walk you through the process step by step.

Specifications

Bar Code Symbologies

Linear Support:	Codabar, Code 39 (3 of 9), Extended 39, Code 93, Extended 93, Code 128, EAN/JAN-8 and -13, EAN/UCC-8, -13 and -14, GS1-128, HIBC, Intelligent Mail , Interleaved 2 of 5, ITF-14, MSI Plessey, PLANET Code, POSTNET, UCC-12, UCC-128, UCC-128 Coupon Code, UPC-A, UPC-E, SSCC-14, SSCC-18 and others
2D/Multi-Dimensional Support:	Aztec, Aztec Mesa, Code 16K, Code 49, Data Matrix, EAN/ UCC Composites, MaxiCode, MicroPDF 417, PDF 417, QR Code, RSS-14 Composites, TLC39

Database Support (OLE DB/ODBC/ASCII)
Access all popular database types including ASCII (comma, tab and quote delimited), DB2, dBase, FoxPro, Informix, Lotus Smart Suite, Microsoft Office, Oracle, Paradox, SQL and others

Language Support
Dutch, English, French, German, Italian, Polish, Portuguese, Spanish

Printer Support
LABEL MATRIX supports over 1750 specialized thermal and thermal-transfer label printers and any printer with a valid Windows driver supplied by the manufacturer. Printer drivers included with
LABEL MATRIX are installed to the program’s Drivers’ directory when the program is installed.
Some printers include both a native driver and an extended driver for the same printer model, designated in the program as follows:
(L) = Driver is a native software driver (developed specifically for use with this label design software)
(X) = Driver is from an extended driver set (giving you access to the driver’s advanced properties)

Radio Frequency Identification (RFID) Support
LABEL MATRIX is RFID made simple - the easy solution for closed-loop RFID label printing to meet EPC and DoD compliance standards. It features an easy-to-use interface for users printing and programming RFID labels, while still offering the advanced functionality needed for today’s RFID label printing applications. LABEL MATRIX supports the most popular RFID tags - visit www.teklynx.com/printers for the latest list of supported RFID printers and tags.

System Requirements

Version 8.10 Hardware Requirements

Processor

Minimum: 600 MHz Pentium III-compatible or faster
Recommended: 800 MHz or faster (minimum required for Windows® Vista)

Operating System

Windows® 2000 Professional with SP4
Windows® 2000 Server with SP4 or later
Windows® XP with SP2 or later
Windows® Server 2003 Standard, Enterprise or Datacenter edition with SP1 or later
Windows® Vista
Windows® Server 2008

Memory

64 MB RAM with Windows 2000 (128 MB recommended)
128 MB RAM with Windows® XP (256 MB recommended)
256 MB RAM with Windows® Server 2003 (512 MB recommended)
512 MB RAM with Windows® Vista (1 GB recommended)
512 MB RAM with Windows® Server 2008 (2GB recommended)

Hard Disk Space

Hard drive with at least 150 MB of available space

Display

Minimum:
800 x 600 High Color - 16 bit
Recommended:
1024 x 768 True Color - 32 bit

Supporting Software

Microsoft® Internet Explorer 6.0 SP1 or later
Adobe Acrobat Reader 6.0

Additional Requirements

Parallel port if using a parallel key (hardware key)
USB port if using a USB key (hardware key)
Serial port if required by printer
CD-ROM drive
Mouse

Microsoft “Works with Windows Server 2008″ Designation
LABEL MATRIX 8.10.04 has received the Microsoft “Works with Windows Server 2008″ designation. This validation, which was performed by an independent testing company, assures that the LABEL MATRIX software product will fully operate on Windows Server 2008 platforms.*

Edition Comparison

Features Maxtrix

LABEL MATRIX	QuickDraw	LABEL MATRIX	PowerPro
General
Print-Only Version		*	*
Network version		*	*
Keyless software activation	*	*	*
Live Print Preview (view multiple labels with “live” variable data displayed)		*	*
Label preview and description	*	*	*
Over 100 compliance label templates included		*	*
Automatic paragraph sizing & scale to fit		*	*
Bulleted & numbered lists with hanging indents		*	*
Undo/Redo ability	(single)	(multiple)	(multiple)
Clip art library included			*
Graphic formats import (bmp, pcx, jpg, tif, etc.)	*	*	*
Label Specific Security		*	*
Label Background templates with round label formats	Open	Open	Open/Edit
Linear bar code support	*	*	*
HIBC Support	*	*	*
UCC/EAN 128 and MaxiCode wizards		*	*
Support for over 12 2D bar codes		*	*
Extended 2D support including TLC39 and QR Code			*
TextArt Objects/RTF Editor		*	*
Color support	*	*	*
Variables
Keyboard entry at print time	*	*	*
Double entry (verification) ability		*	*
PickList “drop-down” data entry	*	*	*
Data retrieved from a database file	*	*	*
Counters (serial numbers) with support for alpha/numeric	*	*	*
Counters with custom numbering abilities		*	*
Date and time stamping using multiple formats	*	*	*
Advanced math, string and logical functions		*	*
Expansion Variables (use code “shortcuts” in expressions)		*	*
Database
Configure an ODBC/OLE DB data source		*	*
Sequential database access	*	*	*
Keyed database access		*	*
SQL query capability/SQL Query Builder Wizard		*	*
Retrieve data from unlimited number of databases per label		*	*
Includes separate Database Editor program		*	*
Directly edit database records in the Data Grid			*
Data Grid for viewing database records	*	*	*
Printing
Windows driver printer support	*	*	*
Variable duplicate label count from any origin	*	*	*
Support for over 1000 thermal & thermal transfer printers		*	*
Stacked printing ability with muliple labels per page			*
Reverse the order of pages in a print job			*
Tools
Pocket LABEL MATRIX support		(0 licenses)	(1 license)
Automatic printing from a source database (AutoPrint)		*	*
Command line support		*	*
Export image and variable information to a data file (Write Data)		*	*
View & customize reports generated from label log files (Log Viewer)			*
Extended RFID Tag support (HF + UHF)			*
Directly modify printer code with Job Modifier		*	*
Save all external attached files with the label design (Bundle Save)		*	*
Code Converter label conversion utility			*
OLE Automation			*
General
Tabbed label browsing (click a tab to easily switch between multiple open labels)	*	*	*
